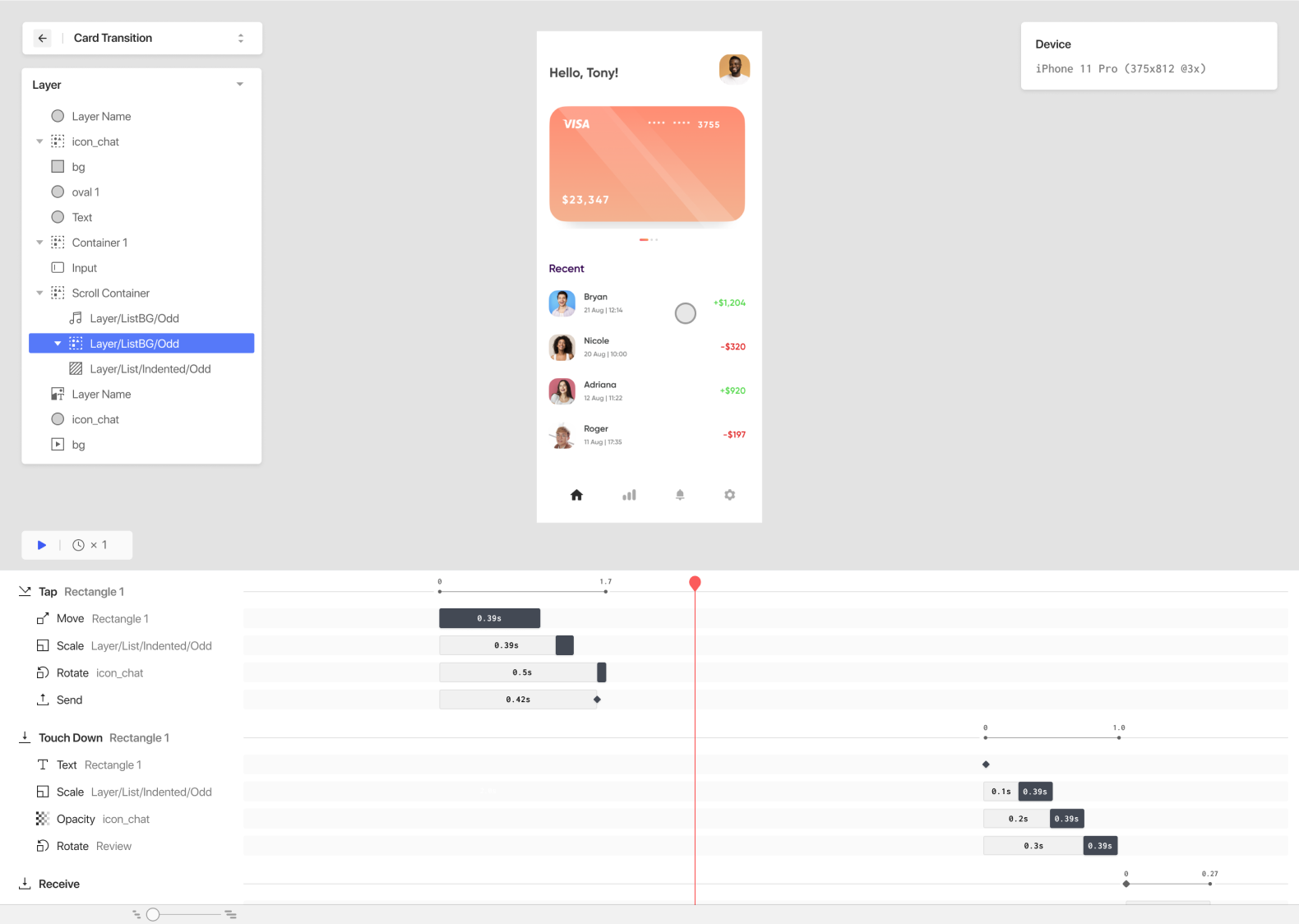

Recipe Page

The recipe page is where team members can see the interaction recipe–the recorded scenario and all interaction specs needed for implementation.

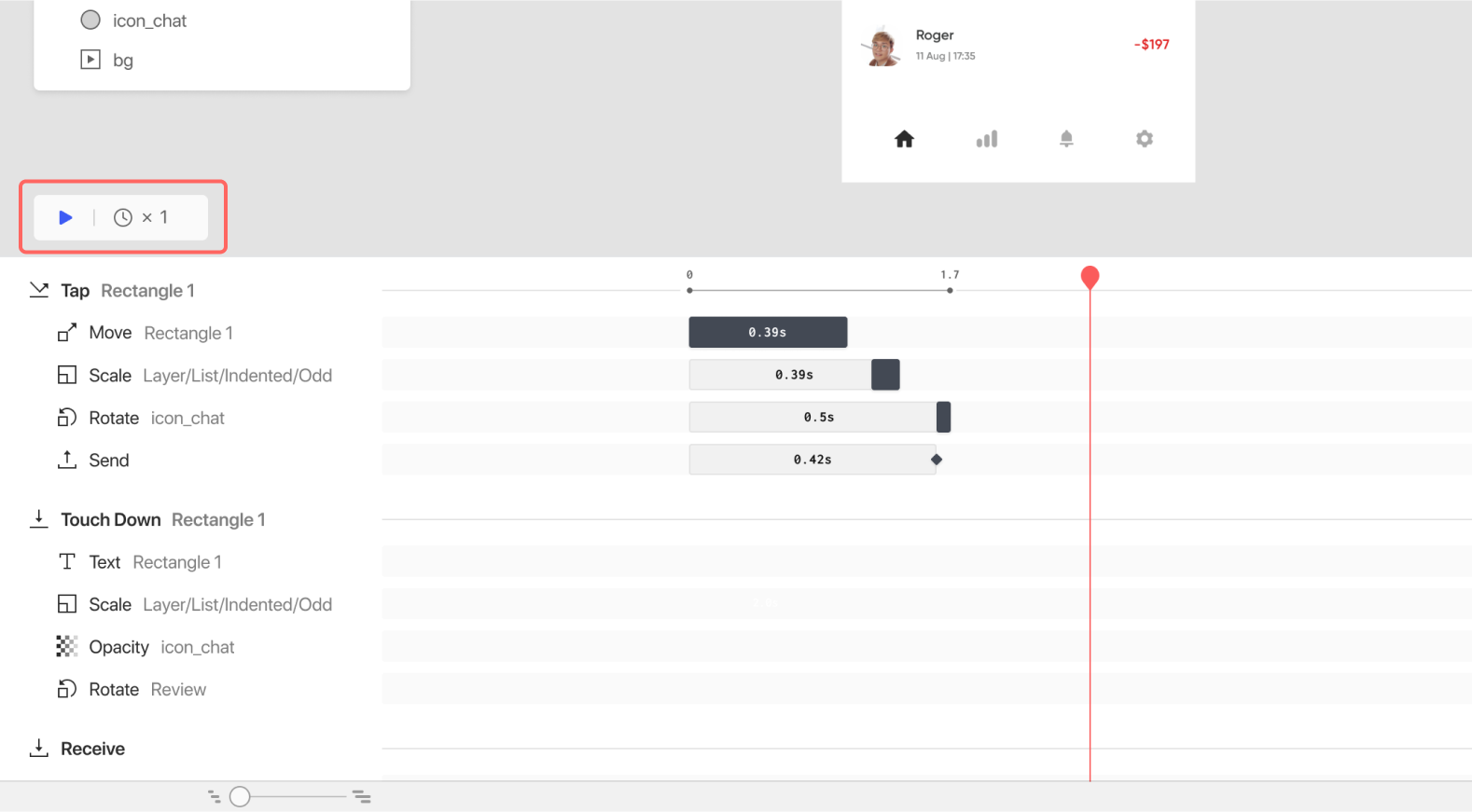

Timeline

You can play the recorded scenario of an interaction recipe by clicking on the Play button at different speeds. If you want more precise control, drag the timeline scrubber to shuttle forward or backward to any point in time.

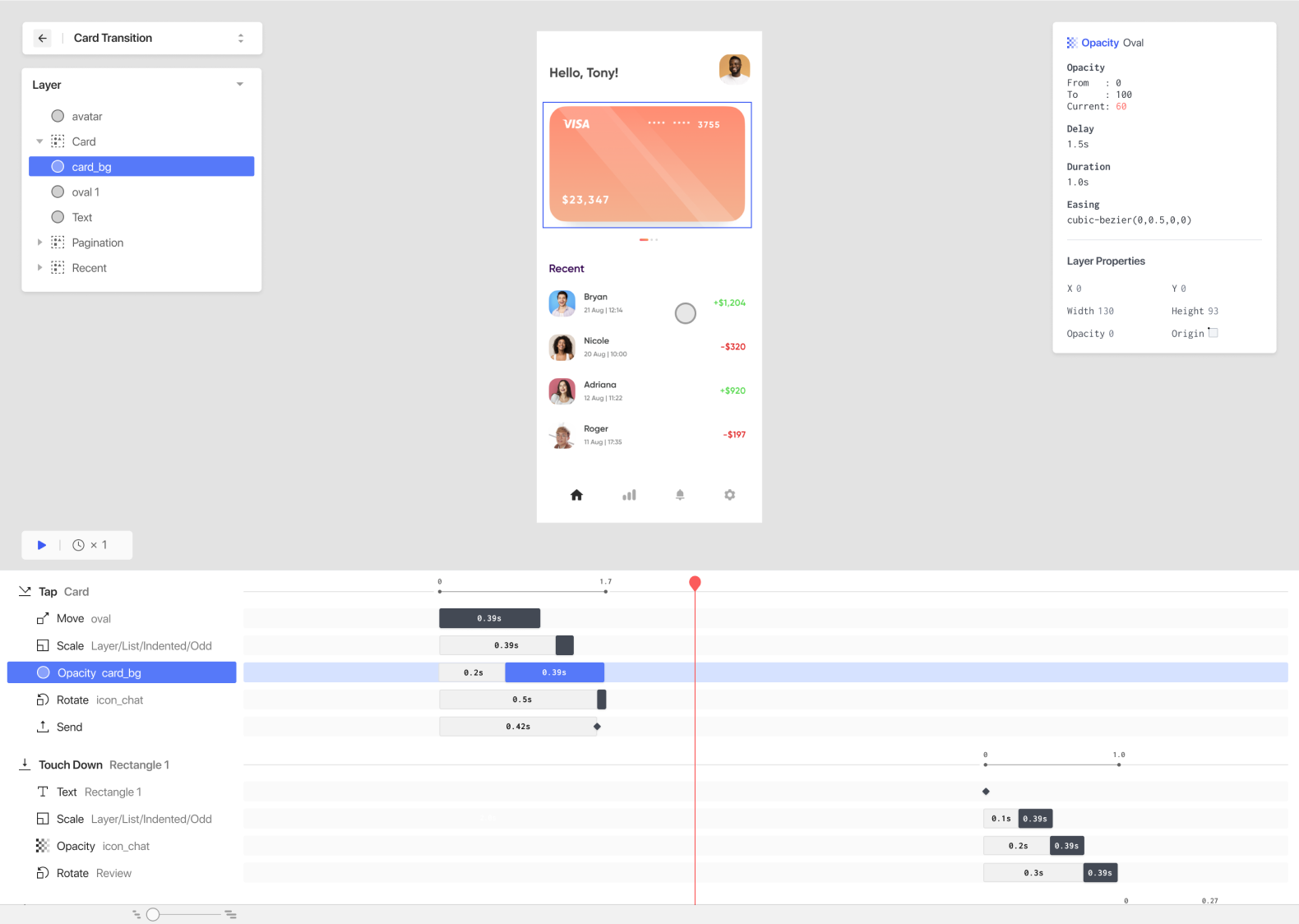

Interaction Specs

If you select any trigger or response on the timeline, you get to see the corresponding interaction specs and layer properties in the property panel on the right side.

Layer Panel

The layer panel on the left side shows the layer structure of your prototype. Select a specific layer in the layer panel and it would be highlighted in the preview.

Shortcuts

Use these shortcuts to control the timeline more efficiently.

FeaturemacOS & Windows
Play or PauseSpacebar
Timeline Zoom In+
Timeline Zoom Out-
Timeline PanningSpacebar + Drag
